YT-B Series 6 Color High Speed Flexographic Printing Machine YT-B6600 manufacturer from China WENZHOU MAOLONG MACHINE CO.,LTD

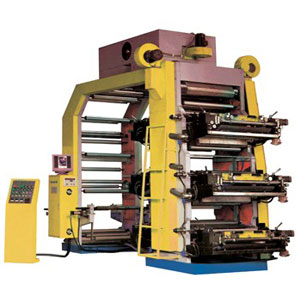

YT-B Series 6 Color High Speed Flexographic Printing Machine

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YT-B6600

Type: Flexographic Printer

Usage: Tube Printer

Plate: Letterpress

Color & Page: Multicolor

Brand Name: Maolong

It is the ideal printing equipment for producing paper packing bag for food, supermarket handbag, and clothes bag etc.

Machine technical specifications:

Model : YT-B6600

Max Width of Material :600mm

Max. Width of Printing : 560mm

Material : Non woven:15-120gram Paper:15~400g/m2 PP woven:15-500gram PVC:10~120μm OPP:10~100μm BOPP:10~100μm PE:15~150μm NY:10~120μmPET:10~100μm CPP:10~100μm

Printing color :6 colors

Max. Length of Printing: 400mm standard

Machinery speed: 10-90m/min

Max. Speed of Material Printing :10-70m/min

Thickness of Plate(including the glue): 2.38mm

Machine weight: 4500kg

Machine dimension(L×W×H) : 4.8m×1.8 m×2.8m

Power Voltage:380V,3PH,50HZ

Main Machine Specification Lists:

1. Main Inverter Motor: 1 pc (Libiao, Shanghai)

2. Ink transfer motor: 1 pc (Libiao Shanghai)

3. The inverter : 1pcs ( Delta, Taiwan)

4. Blower: 20pcs(Fengyang Shanghai)

5. Aluminum Rollers: (Taiwan invested made in Shanghai, Surface oxidation, blance treatment) 6. Ceramic Anilox Roller: 1 pc/per color (Cuntian, Shanghai)

7. Rubber rollers: 1pcs/per color (own products)

8 .Low pressure Electrical parts : 1 set( CHINT, China)

9. Switches: 1 set(Schneider emluator)

10. Electrical control Box: 1 set (own products)

11. Main machine body: 1 set (own products)

12. Main machine casting: (Chuangxin Cast iron Co., ltd, Henan)

13. Pneumatic component: (Chuangfeng Qidong)

14. Bearings 1 set (NSK,Japan)

15. Magnetic powder: 1pcs Ruian

16. Auto tension: 1pcs (ShangHai Tension Equipment co.,LTD)

17. Air shaft: 2pcs (RuiAn QiangGuang)

18. EPC Device: 1pcs (Ruian)
