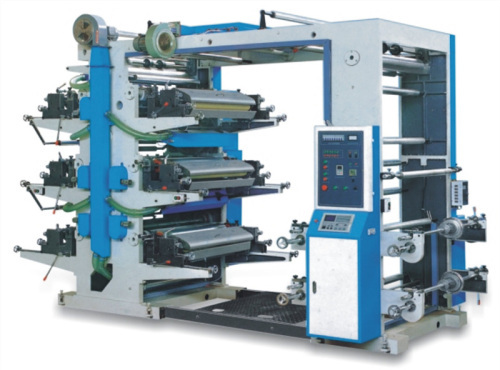

YT Series 6-Color Flexographic Printing Machine

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YT-6600

Type: Flexographic Printer

Usage: Tube Printer

Printing Width: 600mm

Total Power: 11kw

Dimensiong: 4200x1600x2400mm

Plate: Letterpress

Color & Page: Multicolor

Brand Name: Maolong

printing speed: 50m/min

Weight: 3000kg

Suitable for printing polyethylene, polypropylene plastic bags, cellophane and roll paper packaging materials

Main Parameter

A: Model:YT-6600

B:Material :Non-woven fabric, Paper, PE coated Paper, Plastic Film and so on

C:Max. Material Width: 600mm

D:Max. Width of Printing: 560mm

E:Max .Length of Printing: 1000mm

F:Max. Speed of Material Printing: 50m/min

G:Thickness of Plate (including the glue): 2.38mm

H. Machine dimension: 4200*1660*2950

I. Machine weight: 3500kg

Main Machine Specification List:

A. Main Motor: 1 pc (Libiao Shanghai)

B. Ink transfer motor: 1 pcs (Libiao Shanghai)

C: Converter Motor 1 pc (Libiao Shanghai)

D: The inverter: 1pcs ( Delta, Taiwan)

F: Blower: 2pcs (Fengyang Shanghai)

G: Aluminum Rollers: (Taiwan invested made in Shanghai, balance treatment)

H: Metal Anilox Roller: 1 pcs/per color (own product)

I:Rubber rollers: 1 pcs/per color (own product)

J:Low pressure Electrical parts :(Zhejiang, China)

K:Switches: (Schneider emluator)

L:Electrical control Box: 1 set (own products)

M:Main machine body: 1 set (own products)

N:Main machine casting: 1set (Chuangxin Cast iron Co., Ltd, Henan)

O:Pneumatic component: 1 set (Chuangfeng Qidong)

Spare parts for free:

Tool Box 1 set (1-10# screwdriver, oil gun, Inner Hexagon Spanner 1 set, Switches 2 pcs, Contactor 2 pcs , heating tube 2 pcs, machine operation instruction 1 pcs, the inverter instruction 1 pcs )
